Description

FREE SHIPPING! This unit qualifies for free shipping anywhere in the continental United States.

WARRANTY 2 Year Consumer / 2 Year Limited Commercial 2 Year Engine

Literature Owners Manual Brave Log Splitter Catalog

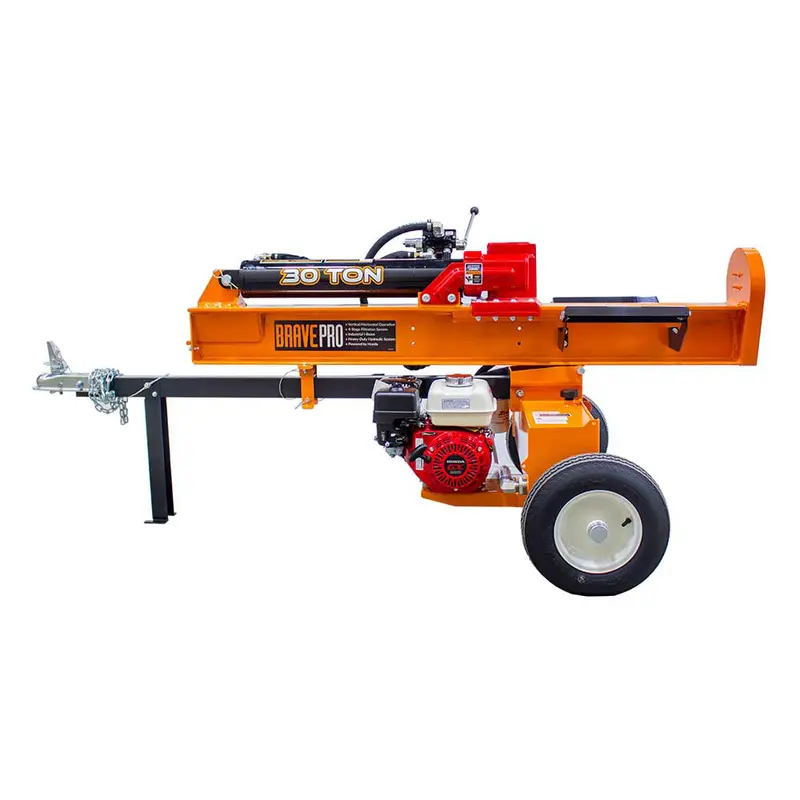

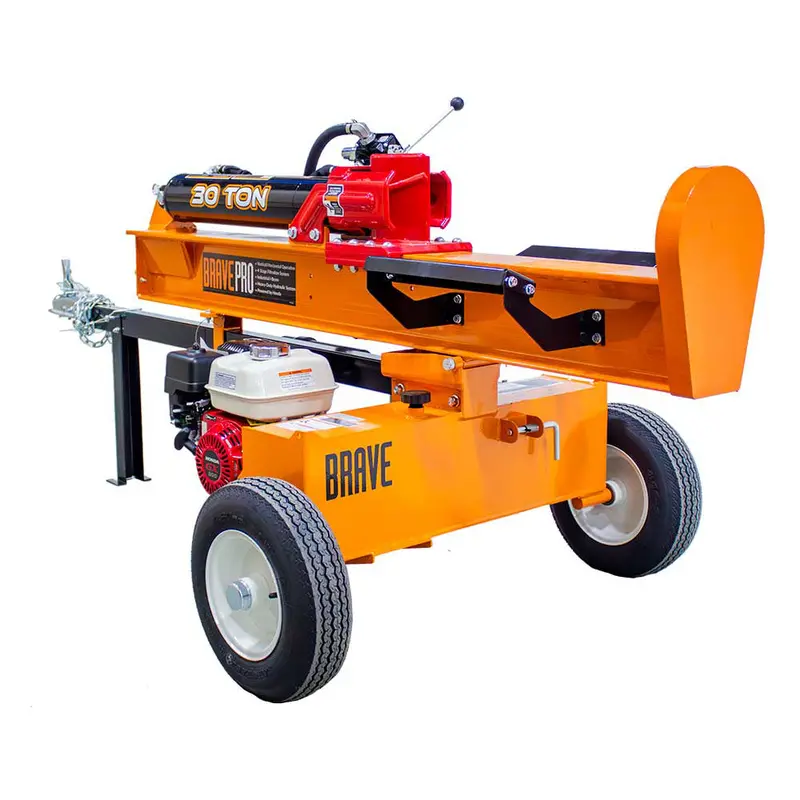

This professional-quality Brave 30-ton log splitter is designed for tough applications in both vertical and horizontal positions. An attractive powder coated finish provides the finest protection available, and BRAVE’s rigid quality control and component testing help ensure years of productive, reliable service with this professional wood splitter.

• Industrial I-beam construction provides incredible strength
• The 4-stage hydraulic filtration system prevents contamination and damage to the hydraulic system by removing metal and other microparticles; components include a suction strainer, breather cap air filter, return line filter, and magnetic drain plug
• Unique, high-performance wedge design makes splitting easier and more efficient
• Log cradles catch split logs and serve as a work table for large logs
• Heavy-duty log dislodger ejects logs that stick to the splitting wedge protecting the control valve and other hydraulic components from damage
• The convenient lift handle provides added control for quicker, easier and safer transitions between the vertical and horizontal operating positions
• Industrial cylinder with Halite seals keeps constant and consistent pressure while splitting
• O-ring fittings on the control valve make assembly easier and reduce leaks
• Two-stage pump to handle even the toughest jobs
• The manual tube keeps owner’s manual handy
• Sherwin-Williams powder coat paint to withstand heavy use and weather elements
• Tow-ready with 2-in. ball hitch and chains
• Highway-rated tires
• Optional fenders and engine guard

Specifications

Engine	Honda GX200, Commercial
Pump	13 GPM
Operation	Horizontal and Vertical
Dislodger	Standard
Size	83″L x 41″W x 41″H
Splitting Force	30 Tons
Splitting Height	30″
Cycle Time	14 Seconds
Beam	6″ heavy-duty formed steel
Wedge	8″ High carbon steel
Log Opening	25″
Cylinder Size	4.5″ x 24″ clevis type, 2″ rod
Hydraulic System	8.5 gal. capacity
Hitch	2″
Towing Speed	45 MPH
Shipping Weight	525 lbs

Lift Gate Delivery This item will ship via truck freight. The driver will not be responsible for helping you unload the freight. If you do not have a means to unload a heavy crate from the back of a tractor trailer (loader, fork lift, etc), please choose the lift gate delivery option above.

SOME ASSEMBLY REQUIRED.
