Description
Warranty
- 5 years/1200 hours (First 2 Years No Hour Limit)
- 3 Year Limited Engine
|
Built For All Day, Everyday Performance

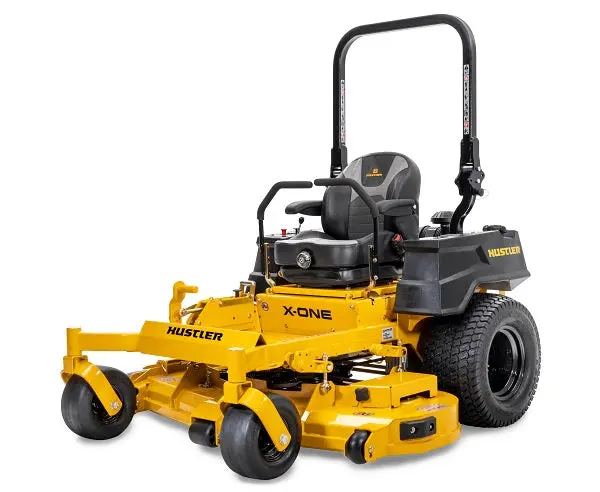

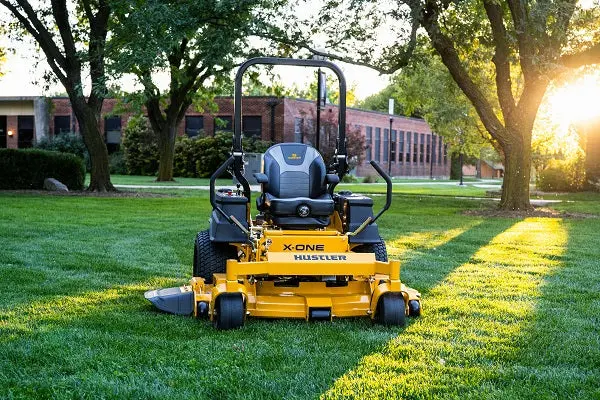

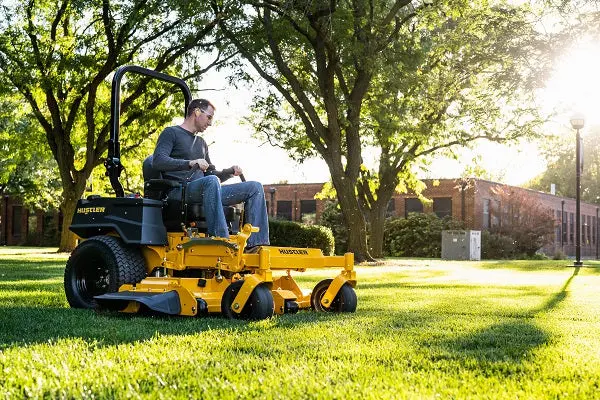

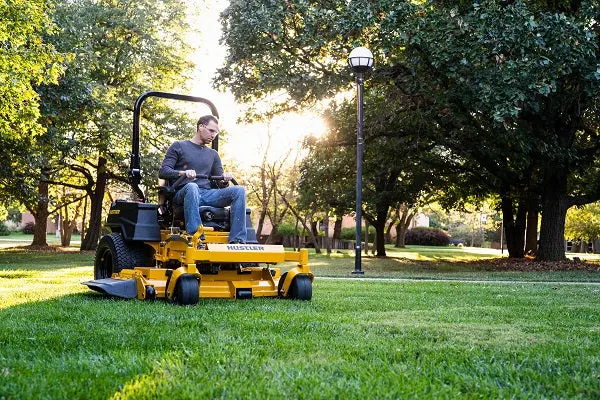

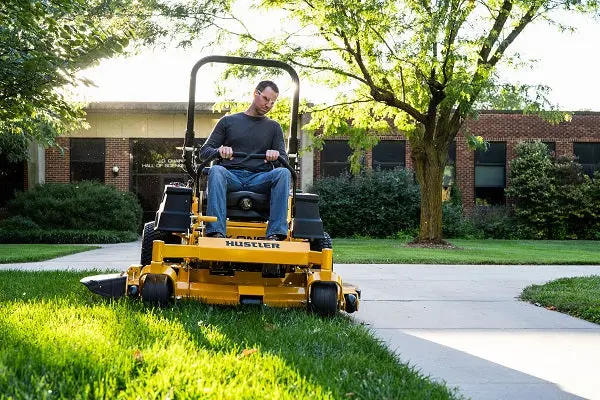

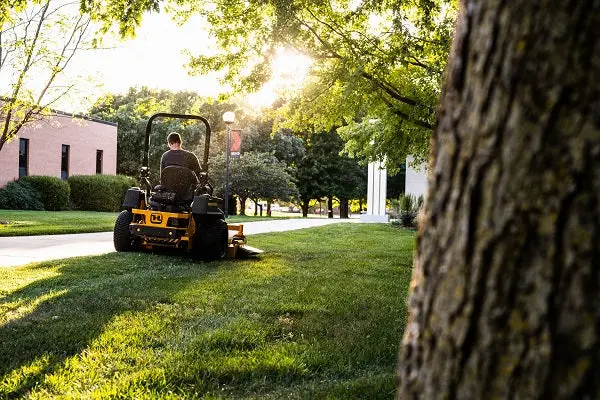

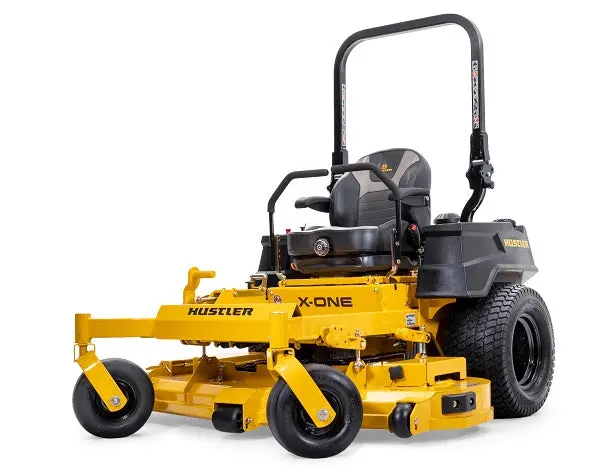

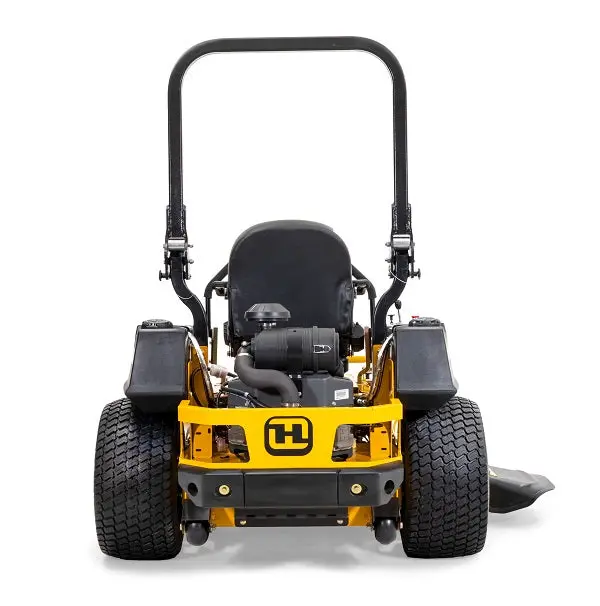

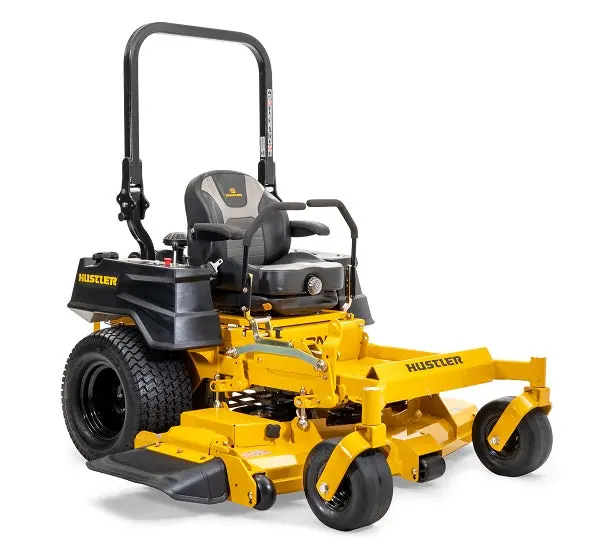

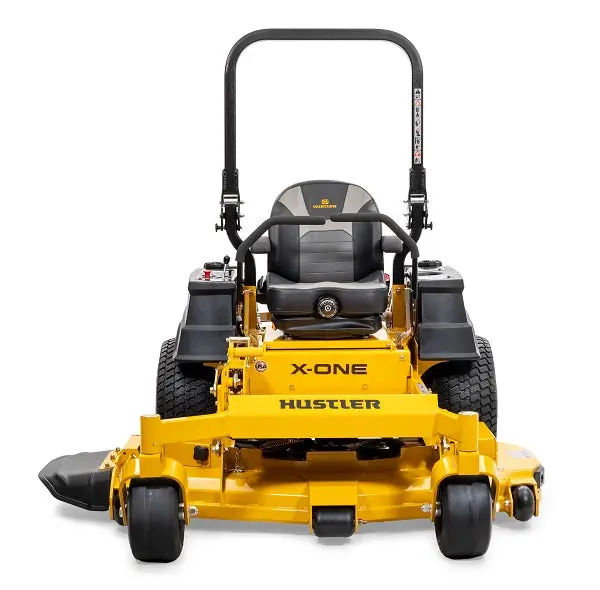

The X-ONE® is built for the full-time commercial landscaper to provide all-day, everyday performance. It offers a choice of carbureted or fuel-injected engines and a selection of side or rear-discharge decks. The X-ONE sets the standard for commercial zero-turn value.
- Fabricated Frame for Durability: 1.5” x 3.0” steel frame making it one of the toughest and most durable in its class.
- SmoothTrak™ Steering: Precision control to help trim and maneuver easily around obstacles. Other brands have sensitive steering arms causing sudden and jerky movements.
- Foot Operated Deck Lift: Easily adjust the deck height between 1”-5.5” with your foot.
- VX Deck: Fabricated 7 ga. steel engineered for an extreme vacuum for enhanced performance and cut quality.
- Commercial-grade Torque: Driven by Parker-utilized transmissions.
- I3M Seat: High-back seat with adjustable armrests and 3-inch suspension travel range.
- Incredible Power: Power through with Parker unitized 12cc/rev pumps. Finish fast with a choice of engine sizes.
|
|
Hustler X-One Accessories
|
| 3 Bag Powered Catcher (must order (1) adapter kit below to complete) |
943571 |
| Bac-Vac Catcher (must order (1) adapter kit below to complete) |
943555 |
| Bac-Vac & 3 Bag Catcher Adapter 52″ |
128801 |
| Side Fabric Catcher 3.5 Bushel (no adapter needed) |
943654 |
| Standard Aluminum Side Catcher 3.3 Bushel (Accelerator) |
GCSS |
| Jumbo Aluminum Side Catcher 5 Bushel (Accelerator) |
GCSSXL |
| Mulching Kit 52″ |
126126 |
| Flex Forks Kit (cannot use with Bagger installed) |
606696 |
| Front Light Bar Kit |
128867 |
| Side Light Bar Kit |
128869 |
| Hitch Kit |
123915 |
| Steering Lever Extension Kit |
122760 |
| Stripe Kit 2023+ |
128700 |
| Rear Anti-Scalp (single) |
113910 |
| Michelin X-Tweel Turf Caster 13 x 6.5-6 Smooth (1 tire) |
607444 |
| Run Flat – tire/wheel assembly 13 x 6.5 x 6 |
607964 |
__________________________________________________________________
Specifications
Engine
|
| Engine Manufacturer |
Kohler Command Pro |
| Engine Horsepower |
25 |
| Displacement |
725cc |
| Cooling |
Air Cooled |
| Engine Warranty |
3 year |
Drive System
|
| Type |
Dual Hydrostatic |
| Transmission |
Hydro-Gear® ZT-4400® |
| Hydraulic Cooling |
Transmission mounted fan |
| Fuel Capacity |
Duel fuel tanks w/ 12 gal. total capacity |
| Ground Speed (Fwd) |
Up to 12 mph |
| Parking Brake |
Integrated with steering levers |
Deck
|
| Cutting Width |
52″ |
| Cutting Height |
1″ to 5.5″ |
| Deck Depth |
5.5″ |
| Deck Lift |
Foot Operated |
| Number of Blades |
3 |
| Blade Length |
17.86″ |
| Blade Tip Speed |
17,700 |
| Spindles |
Ductile cast iron with steel shaft and sealed ball bearings |
| Deck Engagement |
Electric PTO Clutch |
| Deck Material |
Fabricated 7 gauge with 7 gauge wrappers |
| Spindle Mounts |
Reinforced 7 ga. stamped disc |
| Impact Trim Area |
Front of deck: 11 gauge formed channel with rolled edge |
Construction
|
| Frame |
1.5″ X 3″ steel tubing |
| Front Axle |
Fabricated with tapered roller bearings |
| Front Caster Wheel |
Tapered wheel bearings and debris cap |
| Front Caster Fork |
Fabricated 1/2″ steel |
General
|
| Seat |
I3M Suspension Seat |
| Cup Holder |
Yes |
Dimensions
|
| Front Tire (Inches) |
13 x 6.5-6 |
| Drive Tire (Inches) |
24 x 9.5-12 |
| Weight (lbs) |
1240 |
| Height (Inches) |
49, 72.5 w/ ROPS up |
| Length (Inches) |
80.2 |
| Width w/ Chute Up (Inches) |
54.4 |
| Tire-to-Tire Width (Inches) |
51 |
| Productivity (Acres Per Hour) |
5.52 |
Warranty
|
| Warranty |
5 years/1200 hours (First 2 Years No Hour Limit) |
Dimensions with Catcher
|
| Catcher Style |
3-bag |
| Powered / Non-powered |
Powered |
| Catcher Capacity |
12 bushel |
| Mower Length w/ Catcher |
109.1″ |
| Mower Width w/ Catcher |
58.9″ |
| Style 2: Catcher Style |
BAC-VAC |
| Style 2: Powered / Non-Powered |
Powered |
| Style 2: Catcher Capacity |
10 bushel |
| Style 2: Mower Length w/ Catcher |
106.3″ |
| Style 2: Mower Width w/ Catcher |
58.9″ |
If you have any questions about this Hustler X-One 52″ mower, give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
