Description
Warranty
- 5 Year / 1200 Hour (First 2 Years No Hour Limit)
- 3 Year Limited Engine
|
Diesel Power to do Any Job

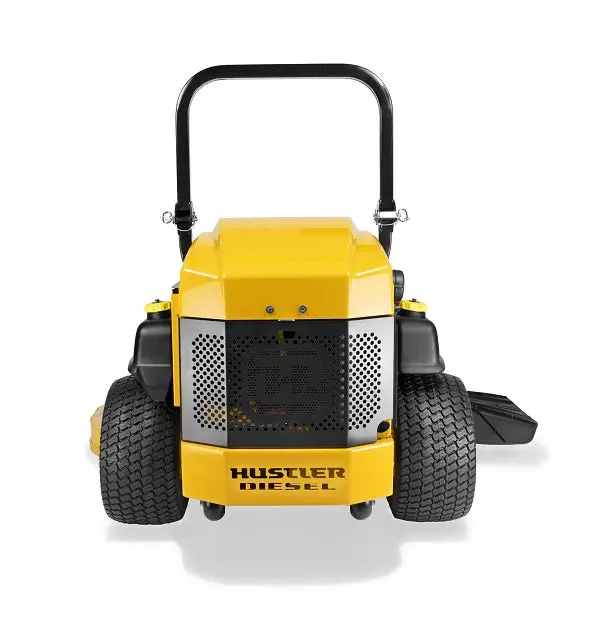

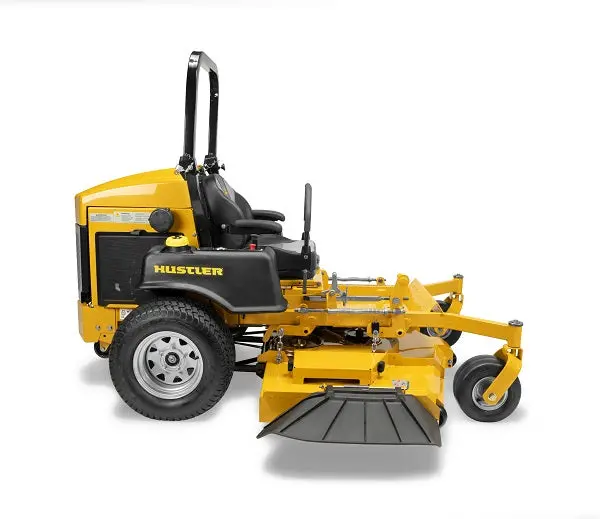

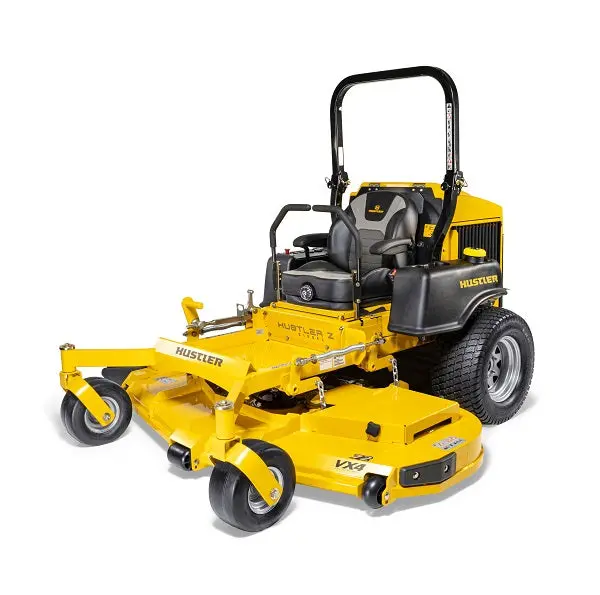

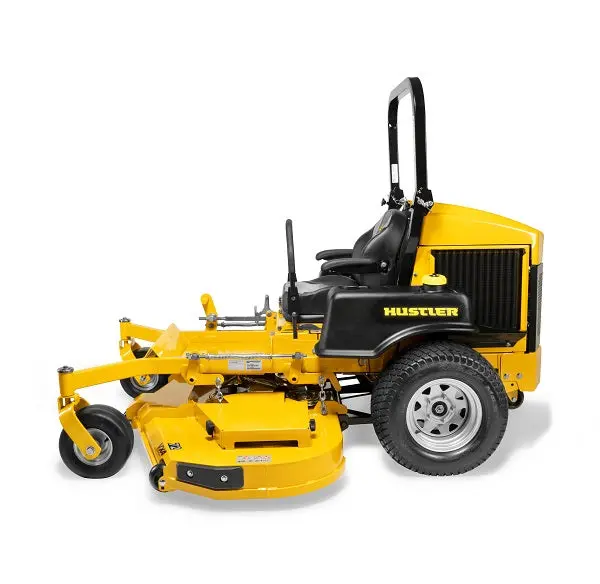

The Hustler® Diesel Z gives you all the great features of a Hustler product paired with fuel-economy of a diesel.
- 60” or 72” side or rear-discharge VX4® deck – engineered to move more grass at high-speeds while maintaining cut-quality
- Heavy-duty fabricated frame – unmatched durability
- Exclusive SmoothTrak™ steering – responsive, precise control
- Patented automatic park brake
- I3M suspension seat with adjustable armrests and 3-inch travel range
- Patented belt drive system – provides up to three times longer belt life
- Clean, compact, service-friendly design
|
|
Hustler Z Diesel Accessories
|
| Fabric Side Catcher 3.5 bushel |
943654 |
| Standard Aluminum Side Catcher 3.3 Bushel (Accelerator) |
GCSS |
| Jumbo Aluminum Side Catcher 5 Bushel (Accelerator) |
GCSSXL |
| Mulching Kit 72″ |
124316 |
| Flex Forks Kit (cannot use with Bagger installed) |
116281 |
| Electric Deck Lift |
123739 |
| Beacon Kit |
110467 |
| Flasher Kit |
124554 |
| Hitch Kit |
109920 |
| Light Kit |
110153 |
| Sand Kit 72″ |
124139 |
| Steering Lever Extension Kit |
122760 |
| Stripe Kit 60″, 72″ Deck |
116842 |
| Rear Anti-Scalp (Dual) 72″ Deck |
113937 |
| Rear Anti-Scalp (Single) 60″, 72″ Deck |
113910 |
| Michelin X-Tweel Turf Caster 13 x 6.5-6 Smooth (1 tire) |
607444 |
| Michelin X-Tweel Turf 24 x 12N12 (1 tire) |
607446 |
| Semi-Pneumatic Tire – tire/wheel assembly 13 x 6.5 x 6 |
607964 |
__________________________________________________________________
Specifications
Engine
|
| Engine Manufacturer |
Perkins |
| Engine Horsepower |
25 |
| Displacement |
1130cc |
| Cooling |
Liquid-cooled, direct-drive, mechanical cooling fan |
| Air Cleaner |
Heavy-Duty Canister |
| Engine Warranty |
3 year |
Drive System
|
| Type |
Dual Hydrostatic |
| Transmission |
Tandem Hydro-Gear 21cc pumps with Parker TG wheel motors |
| Hydraulic Lines |
Stainless Steel Parker Seal-Loc Technology |
| Reservoir Capacity |
1.3 gallons |
| Hydraulic Cooling |
Oil Cooler w/ 8″ fan |
| Fuel Capacity |
14.4 gal. |
| Ground Speed (Fwd) |
Up to 11.5 mph |
| Parking Brake |
Integrated with steering levers |
Deck
|
| Cutting Width |
72″ |
| Cutting Height |
1″ to 5.5″ |
| Deck Depth |
5.5″ |
| Deck Lift |
Foot Operated |
| Number of Blades |
3 |
| Blade Length |
24.50″ |
| Blade Tip Speed |
18,800 |
| Spindles |
Ductile cast iron with steel shaft and sealed ball bearings |
| Deck Engagement |
Electric PTO Clutch |
| Deck Material |
7 gauge welded steel |
| Spindle Mounts |
Reinforced 7 gauge stamped disc |
| Impact Trim Area |
Front of deck: 11 ga. Formed Bump Bar, Side of deck: 1.5″ x .375″ steel bar |
Construction
|
| Frame |
1.5″ X 3″ steel tubing |
| Front Axle |
Fabricated with tapered roller bearings |
| Front Caster Wheel |
Tapered wheel bearings and debris cap |
| Front Caster Fork |
Fabricated 1/2″ steel |
General
|
| Seat |
I3M Suspension Seat |
| Cup Holder |
Yes |
Dimensions
|
| Front Tire (Inches) |
13 x 6.5-6 |
| Drive Tire (Inches) |
24 x 12-12 |
| Weight (lbs) |
1711 |
| Height (Inches) |
69 |
| Length (Inches) |
90.4 |
| Width w/ Chute Up (Inches) |
78 |
| Tire-to-Tire Width (Inches) |
56 |
| Productivity (Acres Per Hour) |
6.68 |
Warranty
|
| Warranty |
5 Year / 1200 Hour (First 2 Years No Hour Limit) |
If you have any questions about this 72″ diesel zero-turn mower, give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
